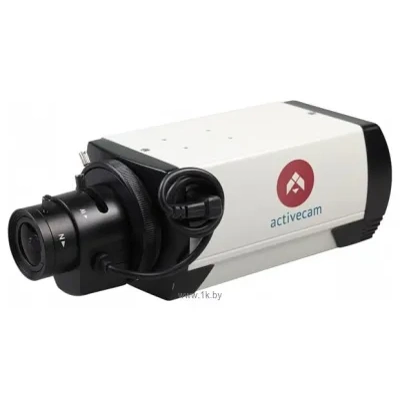

ActiveCam AC-D1140
IP camera, design: standard-sized, wired, indoors, operating temperature: -30 - +60 degC, type of backlight: IR light, Matrix size 1/2.7'', 1920x1080 px, CMOS, alarming ingress
IP camera, design: standard-sized, wired, indoors, operating temperature: -30 - +60 degC, type of backlight: IR light, Matrix size 1/2.7'', 1920x1080 px, CMOS, alarming ingress
General Characteristics |
|
Camera Types |
IP camera |
Constructions |
Standardised |
Matrix |
|
Physical Dimensions of the Matrix |
1/2.7'' |
Types of matrices |
CMOS |
Unfolded |
Progressively |
Efficient megapixels of the matrix |
2 MP |
Min. illumination in color mode |
0.03 lux |
Min. illumination in h/b mode |
0.003 lux |
Fixing the Lens |
CS |
Images |
|
Max. video recording resolution |
1920x1080 |
max. frame per second |
25 |
Sounds |
|
Built-in speaker |
|
Built-in mic |
|
Connecting an external microphone |
|
Two-way audio channel |
|

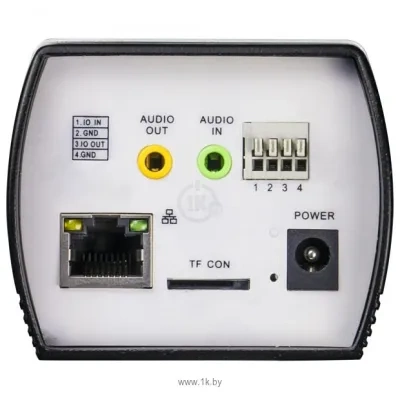

Interfaces |
|
Linear audio input |
|
Linear audio outputting |
|
Video outputting |
|
Microphone entrance |
|
Ethernet |
|
PoE |
|
RS-485 |
|
Alarming entrance |
|
Number of alarming ingresses |
2 |
Relay output |
|
Number of relay inputs |
1 |
Dimensions and weight |
|
Length |
135 mm |
Width |
65 mm |
Heights |
74 mm |
Weight (disambiguation) |
300 g |
