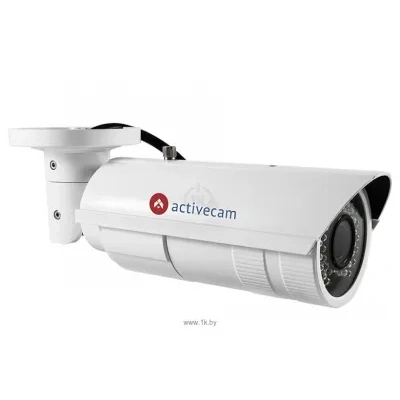

ActiveCam AC-D2053ZIR3
IP camera, design: standard-sized, wired, outside the precinct, Anti-Vandal Corps, operating temperature: -30 - +60 degC, type of backlight: IR light, Matrix size 1/2.5'', 2592x1944 px, CMOS, alarming ingress
IP camera, design: standard-sized, wired, outside the precinct, Anti-Vandal Corps, operating temperature: -30 - +60 degC, type of backlight: IR light, Matrix size 1/2.5'', 2592x1944 px, CMOS, alarming ingress
General Characteristics |
|
Camera Types |
IP camera |
Constructions |
Standardised |
Matrix |
|
Physical Dimensions of the Matrix |
1/2.5'' |
Types of matrices |
CMOS |
Efficient megapixels of the matrix |
5 MP |
Min. illumination in color mode |
0.03 lux |
Type of Objectives |
Variophal manual |
Changing Objectives |
|
Lighting fixture, min |
1.4 |
Lighting lamp, max |
1.4 |
Focal distance, min. |
2.8 mm |
Focal distance, max |
10.5 mm |
Disabling the IR filter |
|
Images |
|
Max. video recording resolution |
2592x1944 |
max. frame per second |
25 |
Sounds |
|
Two-way audio channel |
|

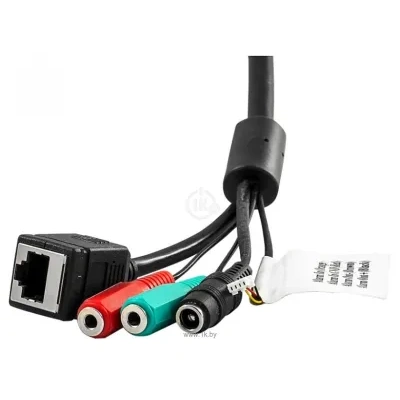

Interfaces |
|
Linear audio input |
|
Video outputting |
|
Microphone entrance |
|
Ethernet |
|
PoE |
|
RS-485 |
|
Alarming entrance |
|
Number of alarming ingresses |
1 |
Relay output |
|
Number of relay inputs |
1 |
Dimensions and weight |
|
Length |
310 mm |
Width |
85 mm |
