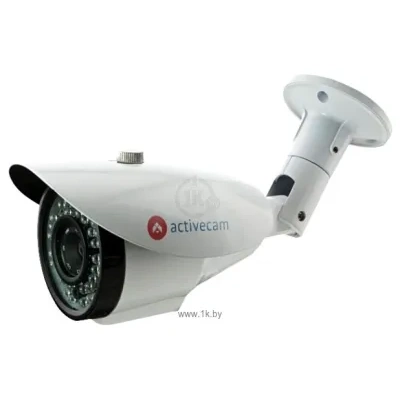

ActiveCam AC-D2111IR3
IP camera, design: standard-sized, wired, outside the precinct, operating temperature: -40 - +60 degC, type of backlight: IR light, matrix size 1/3'', 1280x960 px, CMOS
IP camera, design: standard-sized, wired, outside the precinct, operating temperature: -40 - +60 degC, type of backlight: IR light, matrix size 1/3'', 1280x960 px, CMOS
General Characteristics |
|
Camera Types |
IP camera |
Constructions |
Standardised |
Matrix |
|
Physical Dimensions of the Matrix |
1/3'' |
Types of matrices |
CMOS |
Unfolded |
Progressively |
Efficient megapixels of the matrix |
1.3 MP |
Min. illumination in color mode |
0.005 lux |
Type of Objectives |
monofocal |
Changing Objectives |
|
Lighting fixture, min |
1.8 |
Lighting lamp, max |
1.8 |
Focal distance, min. |
3.6 mm |
Focal distance, max |
3.6 mm |
Diaphragm |
fixedly |
Disabling the IR filter |
|
Images |
|
Max. video recording resolution |
1280x960 |
max. frame per second |
25 |
Sounds |
|
Built-in speaker |
|
Built-in mic |
|
Two-way audio channel |
|
Interfaces |
|
Linear audio input |
|
Linear audio outputting |
|
Video outputting |
|
Ethernet |
|
USB |
|
PoE |
|
RS-485 |
|
Alarming entrance |
|
Relay output |
|

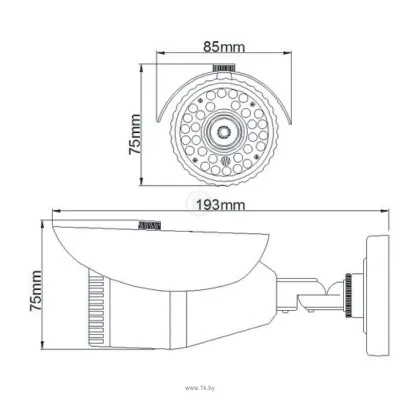

Dimensions and weight |
|
Length |
193 mm |
Width |
75 mm |
Heights |
85 mm |
Weight (disambiguation) |
400 g |
