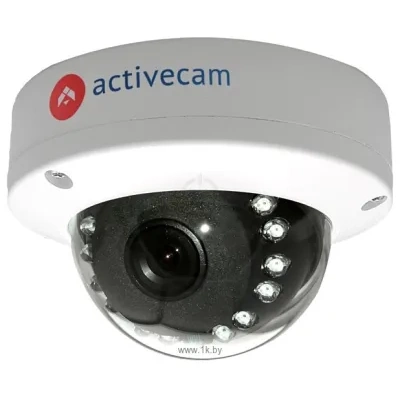

ActiveCam AC-D3101IR1
IP camera, design: domed, wired, outside the precinct, operating temperature: -40 - +60 degC, type of backlight: IR light, matrix size 1/4'', 1280x720 px, CMOS, built-in mic
IP camera, design: domed, wired, outside the precinct, operating temperature: -40 - +60 degC, type of backlight: IR light, matrix size 1/4'', 1280x720 px, CMOS, built-in mic
General Characteristics |
|
Camera Types |
IP camera |
Constructions |
Domed |
Matrix |
|
Physical Dimensions of the Matrix |
1/4'' |
Types of matrices |
CMOS |
Unfolded |
Progressively |
Efficient megapixels of the matrix |
1 MP |
Min. illumination in color mode |
0.1 lux |
Type of Objectives |
monofocal |
Changing Objectives |
|
Focal distance, min. |
2.8 mm |
Focal distance, max |
2.8 mm |
Diaphragm |
fixedly |
Disabling the IR filter |
|
Images |
|
Max. video recording resolution |
1280x720 |
max. frame per second |
20 |
Sounds |
|
Built-in speaker |
|
Built-in mic |
|
Connecting an external microphone |
|
Two-way audio channel |
|
Interfaces |
|
Linear audio input |
|
Linear audio outputting |
|
Video outputting |
|
Microphone entrance |
|
Ethernet |
|
PoE |
|
RS-485 |
|
Alarming entrance |
|
Relay output |
|

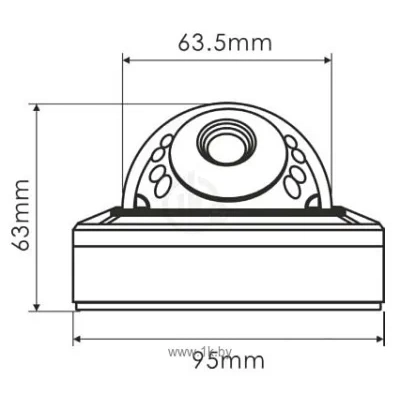

Dimensions and weight |
|
Length |
95 mm |
Width |
95 mm |
Heights |
63 mm |
Weight (disambiguation) |
270 g |
