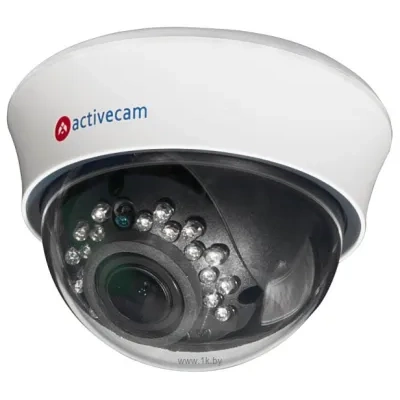

ActiveCam AC-D3123IR2
IP camera, design: domed, wired, indoors, operating temperature: -10 - +50 degC, type of backlight: IR light, Matrix size 1/2.7'', 1920x1080 px, CMOS, optical zoom: 4.3 H
IP camera, design: domed, wired, indoors, operating temperature: -10 - +50 degC, type of backlight: IR light, Matrix size 1/2.7'', 1920x1080 px, CMOS, optical zoom: 4.3 H
General Characteristics |
|
Camera Types |
IP camera |
Constructions |
Domed |
Matrix |
|
Physical Dimensions of the Matrix |
1/2.7'' |
Types of matrices |
CMOS |
Unfolded |
Progressively |
Efficient megapixels of the matrix |
2 MP |
Min. illumination in color mode |
0.003 lux |
Type of Objectives |
Variophal manual |
Changing Objectives |
|
Focal distance, min. |
2.8 mm |
Focal distance, max |
12 mm |
Optical zoom |
4.3 X |
Images |
|
Max. video recording resolution |
1920x1080 |
max. frame per second |
25 |
Sounds |
|
Built-in speaker |
|
Built-in mic |
|
Connecting an external microphone |
|
Two-way audio channel |
|
Interfaces |
|
Linear audio input |
|
Linear audio outputting |
|
Video outputting |
|
Microphone entrance |
|
Ethernet |
|
PoE |
|
RS-485 |
|
Alarming entrance |
|
Relay output |
|

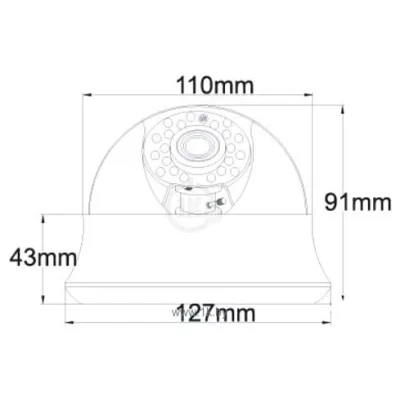

Dimensions and weight |
|
Length |
127 mm |
Width |
127 mm |
Heights |
91 mm |
