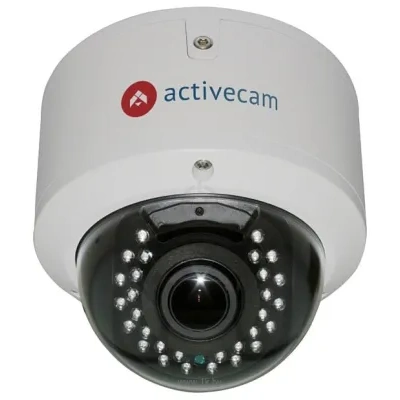

ActiveCam AC-D3143VIR2
IP camera, design: domed, wired, outside the precinct, Anti-Vandal Corps, operating temperature: -40 - +60 degC, type of backlight: IR light, matrix size 1/3'', 2592x1520 px, CMOS, optical zoom: 4.3 H
IP camera, design: domed, wired, outside the precinct, Anti-Vandal Corps, operating temperature: -40 - +60 degC, type of backlight: IR light, matrix size 1/3'', 2592x1520 px, CMOS, optical zoom: 4.3 H
General Characteristics |
|
Camera Types |
IP camera |
Constructions |
Domed |
Matrix |
|
Physical Dimensions of the Matrix |
1/3'' |
Types of matrices |
CMOS |
Unfolded |
Progressively |
Efficient megapixels of the matrix |
4 MP |
Min. illumination in color mode |
0.003 lux |
Type of Objectives |
Variophal manual |
Changing Objectives |
|
Focal distance, min. |
2.8 mm |
Focal distance, max |
12 mm |
Optical zoom |
4.3 X |
Disabling the IR filter |
|
Images |
|
Max. video recording resolution |
2592x1520 |
max. frame per second |
25 |
Sounds |
|
Built-in speaker |
|
Built-in mic |
|
Connecting an external microphone |
|
Two-way audio channel |
|
Interfaces |
|
Linear audio input |
|
Linear audio outputting |
|
Video outputting |
|
Microphone entrance |
|
Ethernet |
|
RS-485 |
|
Alarming entrance |
|
Relay output |
|

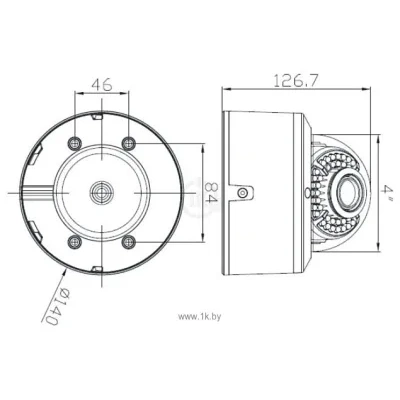

Dimensions and weight |
|
Length |
140 mm |
Width |
140 mm |
Heights |
126.7 mm |
