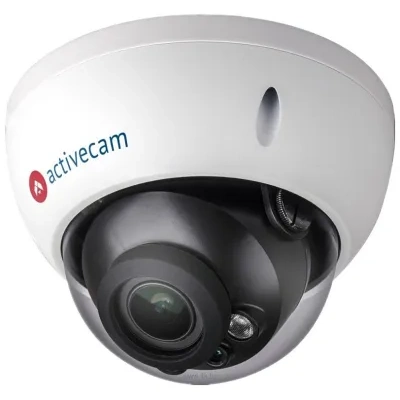

ActiveCam AC-D3143ZIR3
IP camera, design: domed, wired, outside the precinct, Anti-Vandal Corps, operating temperature: -30 - +60 degC, type of backlight: IR light, matrix size 1/3'', 2688x1520 px, CMOS, optical zoom: 4 X, alarming ingress
IP camera, design: domed, wired, outside the precinct, Anti-Vandal Corps, operating temperature: -30 - +60 degC, type of backlight: IR light, matrix size 1/3'', 2688x1520 px, CMOS, optical zoom: 4 X, alarming ingress
General Characteristics |
|
Camera Types |
IP camera |
Constructions |
Domed |
Matrix |
|
Physical Dimensions of the Matrix |
1/3'' |
Types of matrices |
CMOS |
Unfolded |
Progressively |
Efficient megapixels of the matrix |
4 MP |
Min. illumination in color mode |
0.005 lux |
Type of Objectives |
Variophal manual |
Changing Objectives |
|
Lighting fixture, min |
1.8 |
Lighting lamp, max |
1.8 |
Focal distance, min. |
2.7 mm |
Focal distance, max |
12 mm |
Optical zoom |
4 X |
Diaphragm |
Automatically |
Disabling the IR filter |
|
Images |
|
Max. video recording resolution |
2688x1520 |
max. frame per second |
25 |
Sounds |
|
Built-in speaker |
|
Built-in mic |
|
Two-way audio channel |
|
Interfaces |
|
Linear audio input |
|
Linear audio outputting |
|
Video outputting |
|
Ethernet |
|
USB |
|
PoE |
|
RS-485 |
|
Alarming entrance |
|
Number of alarming ingresses |
2 |
Relay output |
|
Number of relay inputs |
1 |
Dimensions and weight |
|
Length |
122 mm |
Width |
122 mm |
Heights |
88.9 mm |
Weight (disambiguation) |
400 g |
