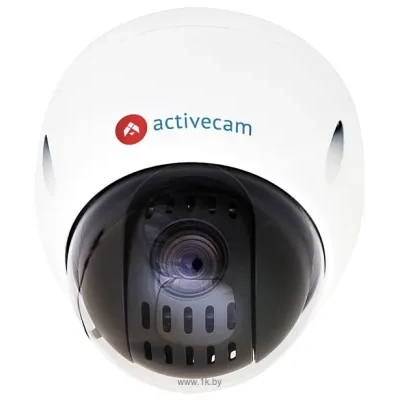

ActiveCam AC-D5124
IP camera, design: domed, wired, outside the precinct, operating temperature: -40 - +60 degC, type of backlight: IR light, Matrix size 1/2.8'', 1920x1080 px, CMOS, optical zoom: 12 X, alarming ingress
IP camera, design: domed, wired, outside the precinct, operating temperature: -40 - +60 degC, type of backlight: IR light, Matrix size 1/2.8'', 1920x1080 px, CMOS, optical zoom: 12 X, alarming ingress
General Characteristics |
|
Camera Types |
IP camera |
Constructions |
Domed |
Matrix |
|
Physical Dimensions of the Matrix |
1/2.8'' |
Types of matrices |
CMOS |
Unfolded |
Progressively |
Efficient megapixels of the matrix |
2 MP |
Min. illumination in color mode |
0.05 lux |
Min. illumination in h/b mode |
0.005 lux |
Type of Objectives |
Variophal Motorized |
Changing Objectives |
|
Lighting fixture, min |
1.6 |
Lighting lamp, max |
2.3 |
Focal distance, min. |
5.1 mm |
Focal distance, max |
61.2 mm |
Optical zoom |
12 X |
Diaphragm |
Managed |
Horizontal viewing angles |
59.3 degrees |
Disabling the IR filter |
|
Images |
|
Max. video recording resolution |
1920x1080 |
max. frame per second |
50 |
Sounds |
|
Built-in speaker |
|
Built-in mic |
|
Connecting an external microphone |
|
Two-way audio channel |
|
Interfaces |
|
Linear audio input |
|
Linear audio outputting |
|
Video outputting |
|
Microphone entrance |
|
Ethernet |
|
PoE |
|
RS-485 |
|
Alarming entrance |
|
Number of alarming ingresses |
2 |
Relay output |
|
Number of relay inputs |
1 |

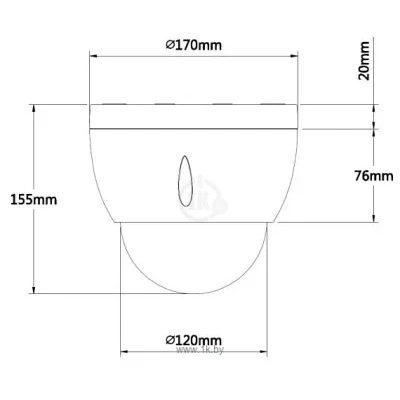

Dimensions and weight |
|
Length |
170 mm |
Width |
170 mm |
Heights |
155 mm |
Weight (disambiguation) |
1,800 g |
