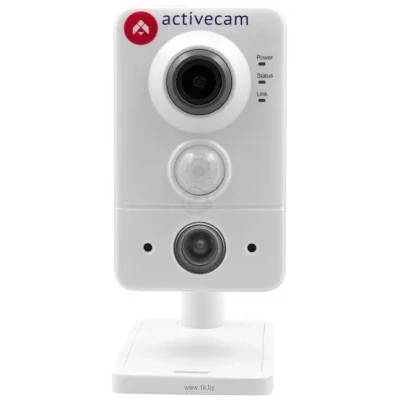

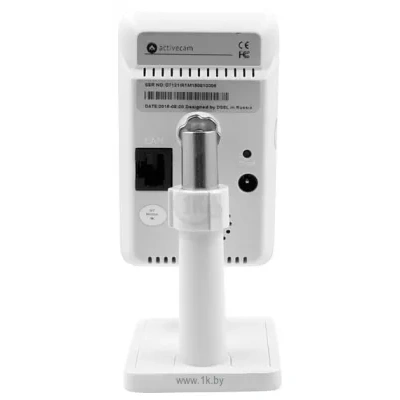

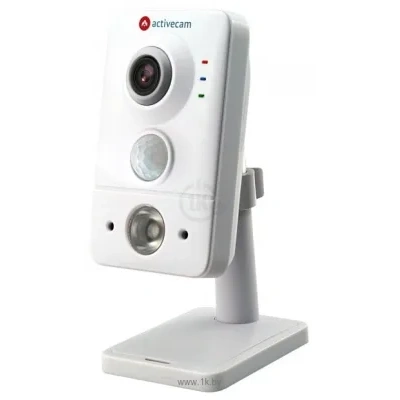

ActiveCam AC-D7121IR1 (3.6)
IP camera, design: tabletop, wired, wirelessly, indoors, operating temperature: -10 - +50 degC, type of backlight: IR light, Matrix size 1/2.7'', 1920x1080 px, CMOS, built-in mic
IP camera, design: tabletop, wired, wirelessly, indoors, operating temperature: -10 - +50 degC, type of backlight: IR light, Matrix size 1/2.7'', 1920x1080 px, CMOS, built-in mic
General Characteristics |
|
Camera Types |
IP camera |
Constructions |
Desktop |
Matrix |
|
Physical Dimensions of the Matrix |
1/2.7'' |
Types of matrices |
CMOS |
Unfolded |
Progressively |
Efficient megapixels of the matrix |
2 MP |
Min. illumination in color mode |
0.005 lux |
Type of Objectives |
monofocal |
Changing Objectives |
|
Lighting fixture, min |
1.8 |
Lighting lamp, max |
1.8 |
Focal distance, min. |
3.6 mm |
Focal distance, max |
3.6 mm |
Diaphragm |
fixedly |
Diagonal viewing angles |
96.1 degrees |
Horizontal viewing angles |
80.6 degrees |
Vertical viewing angles |
58.5 degrees |
Disabling the IR filter |
|
Images |
|
Max. video recording resolution |
1920x1080 |
max. frame per second |
25 |
Sounds |
|
Built-in speaker |
|
Built-in mic |
|
Two-way audio channel |
|
Interfaces |
|
Linear audio input |
|
Linear audio outputting |
|
Video outputting |
|
Ethernet |
|
USB |
|
PoE |
|
RS-485 |
|
Alarming entrance |
|
Relay output |
|
Dimensions and weight |
|
Length |
60 mm |
Width |
32 mm |
Heights |
99 mm |
Weight (disambiguation) |
300 g |
