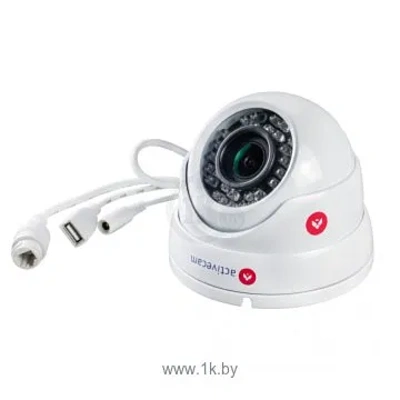

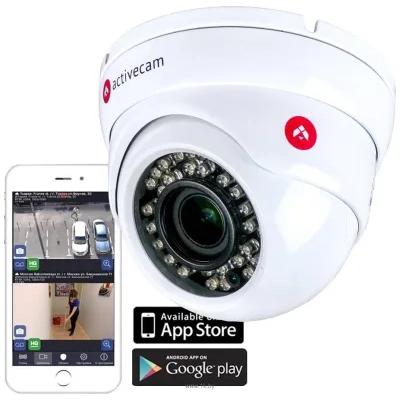

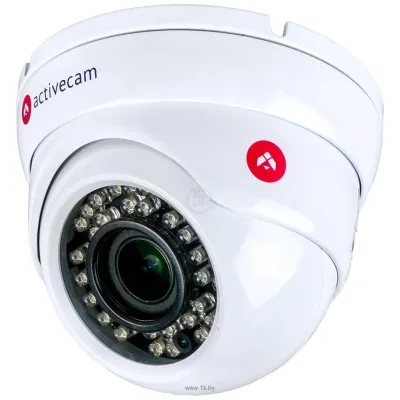

ActiveCam AC-D8123ZIR3
IP camera, design: domed, wired, outside the precinct, Anti-Vandal Corps, operating temperature: -30 - +60 degC, type of backlight: IR light, Matrix size 1/2.7'', 1920x1080 px, CMOS, optical zoom: 4 X
IP camera, design: domed, wired, outside the precinct, Anti-Vandal Corps, operating temperature: -30 - +60 degC, type of backlight: IR light, Matrix size 1/2.7'', 1920x1080 px, CMOS, optical zoom: 4 X
General Characteristics |
|
Camera Types |
IP camera |
Constructions |
Domed |
Matrix |
|
Physical Dimensions of the Matrix |
1/2.7'' |
Types of matrices |
CMOS |
Unfolded |
Progressively |
Efficient megapixels of the matrix |
2 MP |
Min. illumination in color mode |
0.005 lux |
Type of Objectives |
Variophal manual |
Lighting fixture, min |
1.8 |
Lighting lamp, max |
1.8 |

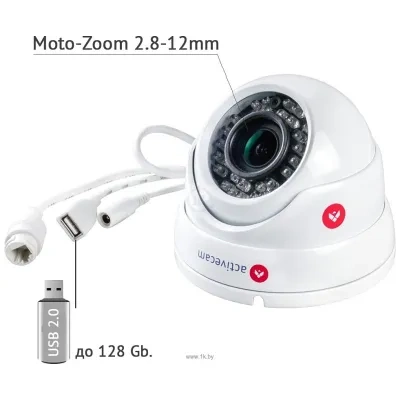

Focal distance, min. |
2.8 mm |
Focal distance, max |
12 mm |
Optical zoom |
4 X |
Diaphragm |
Automatically |
Diagonal viewing angles |
112 Degrees |
Horizontal viewing angles |
99 Degrees |
Vertical viewing angles |
52 Degrees |
Images |
|
Max. video recording resolution |
1920x1080 |
max. frame per second |
25 |
Sounds |
|
Built-in speaker |
|
Built-in mic |
|
Interfaces |
|
Video outputting |
|
Ethernet |
|
USB |
|
PoE |
|
RS-485 |
|
Alarming entrance |
|
Relay output |
|
Dimensions and weight |
|
Length |
119 mm |
Width |
119 mm |
Heights |
100 mm |
Weight (disambiguation) |
800 g |
