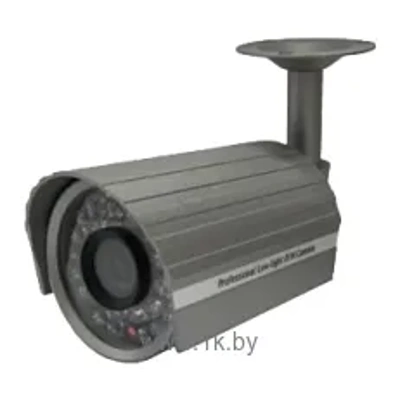

AceCop ACV-262OLWH
CCTV camera, design: standard-sized, outside the precinct, operating temperature: -40 - +50 degC, type of backlight: IR light, matrix size 1/3'', Sony Super HAD CCD II
CCTV camera, design: standard-sized, outside the precinct, operating temperature: -40 - +50 degC, type of backlight: IR light, matrix size 1/3'', Sony Super HAD CCD II
General Characteristics |
|
Camera Types |
CCTV camera |
Constructions |
Standardised |
Type of camcorder |
Colored |
Matrix |
|
Physical Dimensions of the Matrix |
1/3'' |
Types of matrices |
Sony Super HAD CCD II |
Resolution ability |
540 TVL |
Efficient Matrix Resolutions |
752 x 582 pips. |
Min. illumination in color mode |
0.001 lux |
Type of Objectives |
monofocal |
Changing Objectives |
|
Fixing the Lens |
M12 |
Focal distance, min. |
2.9 mm |
Focal distance, max |
2.9 mm |
Diaphragm |
fixedly |
Disabling the IR filter |
|
Signal/noise (SNR) |
50 dB |
Images |
|
BLC |
|
Private Masks |
|
Number of Private Masks |
4 |
Sounds |
|
Built-in mic |
|
Interfaces |
|
Linear audio outputting |
|
Composite videotape |
|
Component video outputting |
|
Microphone entrance |
|
RS-232 |
|
RS-485 |
|
HD-SDI |
|
Alarming entrance |
|
Relay output |
|
nutritious |
|
Power supply voltages |
DC 12V |
Dimensions and weight |
|
Length |
86 mm |
Width |
54 mm |
Heights |
50 mm |
