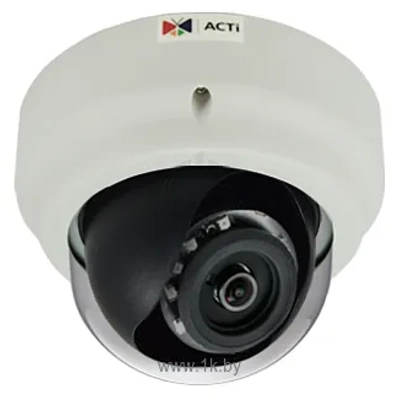

ACTi B51
IP camera, design: domed, wired, indoors, Anti-Vandal Corps, operating temperature: -10 - +50 degC, type of backlight: IR light, matrix size 1/3.2'', 2592x1944 px, CMOS, alarming ingress
IP camera, design: domed, wired, indoors, Anti-Vandal Corps, operating temperature: -10 - +50 degC, type of backlight: IR light, matrix size 1/3.2'', 2592x1944 px, CMOS, alarming ingress
General Characteristics |
|
Camera Types |
IP camera |
Constructions |
Domed |
Type of camcorder |
color, black-and-white |
Matrix |
|
Physical Dimensions of the Matrix |
1/3.2'' |
Types of matrices |
CMOS |
Unfolded |
Progressively |
Resolution ability |
1,500 TVL |
Efficient megapixels of the matrix |
5 MP |
Efficient Matrix Resolutions |
2592 x 1944 pips. |
Min. illumination in color mode |
0.1 lux |
Type of Objectives |
monofocal |
Changing Objectives |
|
Lighting fixture, min |
2.8 |
Lighting lamp, max |
2.8 |
Focal distance, min. |
1.9 mm |
Focal distance, max |
1.9 mm |
Diaphragm |
fixedly |
Horizontal viewing angles |
130 Degrees |
Vertical viewing angles |
98 Degrees |
Disabling the IR filter |
|
Signal/noise (SNR) |
52 dB |
Images |
|
Max. video recording resolution |
2592x1944 |
max. frame per second |
15 |
Sounds |
|
Built-in speaker |
|
Built-in mic |
|
Connecting an external microphone |
|
Two-way audio channel |
|
Interfaces |
|
Audio-mod |
|
Linear audio input |
|
Linear audio outputting |
|
Video outputting |
|
Microphone entrance |
|
Ethernet |
|
USB |
|
PoE |
|
RS-232 |
|
RS-485 |
|
HD-SDI |
|
Digital Sign-In/Out |
|
Alarming entrance |
|
Number of alarming ingresses |
1 |
Relay output |
|
Number of relay inputs |
1 |
nutritious |
|
Power supply voltages |
DC 12V |
Power Utilized |
5.6 W |
Dimensions and weight |
|
Length |
113.9 mm |
Width |
113.9 mm |
Heights |
146 mm |
Weight (disambiguation) |
507 g |
