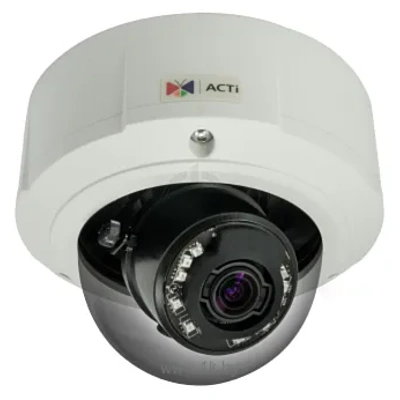

ACTi B84
IP camera, design: domed, wired, outside the precinct, Anti-Vandal Corps, operating temperature: -40 - +50 degC, type of backlight: IR light, matrix size 1/3'', 1280x960 px, CMOS, optical zoom: 3 X
IP camera, design: domed, wired, outside the precinct, Anti-Vandal Corps, operating temperature: -40 - +50 degC, type of backlight: IR light, matrix size 1/3'', 1280x960 px, CMOS, optical zoom: 3 X
General Characteristics |
|
Camera Types |
IP camera |
Constructions |
Domed |
Type of camcorder |
color, black-and-white |
Matrix |
|
Physical Dimensions of the Matrix |
1/3'' |
Types of matrices |
CMOS |
Resolution ability |
1,400 TVL |
Efficient megapixels of the matrix |
1.3 MP |
Efficient Matrix Resolutions |
1280 x 960 pips. |
Min. illumination in color mode |
0.1 lux |
Fixing the Lens |
M12 |
Lighting fixture, min |
1.2 |
Lighting lamp, max |
2.1 |
Focal distance, min. |
3 mm |
Focal distance, max |
9 mm |
Optical zoom |
3 X |
Horizontal viewing angles |
90.6 degrees |
Vertical viewing angles |
67.6 degrees |
Signal/noise (SNR) |
52 dB |
Images |
|
Max. video recording resolution |
1280x960 |
max. frame per second |
60 |
Sounds |
|
Connecting an external microphone |
|
Two-way audio channel |
|
Interfaces |
|
Audio-mod |
|
Microphone entrance |
|
Ethernet |
|
PoE |
|
Digital Sign-In/Out |
|
nutritious |
|
Power supply voltages |
DC 12V |
Power Utilized |
8.8 W |
Dimensions and weight |
|
Length |
152 mm |
Width |
152 mm |
Heights |
114.5 mm |
Weight (disambiguation) |
1 258 g |
