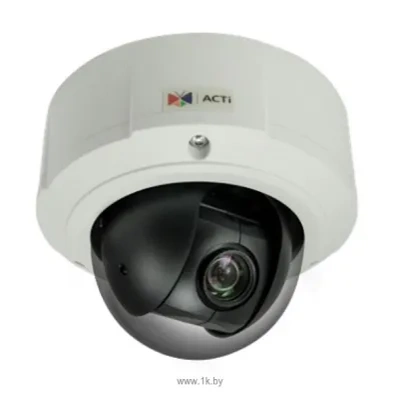

ACTi B97
IP camera, design: rotary, wired, outside the precinct, operating temperature: -20 - +50 degC, matrix size 1/3'', 2048x1536 px, CMOS, optical zoom: 10 X, alarming ingress
IP camera, design: rotary, wired, outside the precinct, operating temperature: -20 - +50 degC, matrix size 1/3'', 2048x1536 px, CMOS, optical zoom: 10 X, alarming ingress
General Characteristics |
|
Camera Types |
IP camera |
Constructions |
Rotary |
Matrix |
|
Physical Dimensions of the Matrix |
1/3'' |
Types of matrices |
CMOS |
Efficient megapixels of the matrix |
3 MP |
Min. illumination in color mode |
0.1 lux |
Min. illumination in h/b mode |
0.05 lux |
Type of Objectives |
Variophal manual |
Lighting fixture, min |
1.6 |
Lighting lamp, max |
3 |
Focal distance, min. |
4.9 mm |
Focal distance, max |
49 mm |
Optical zoom |
10 X |
Diaphragm |
Automatically |
Horizontal viewing angles |
49.6 degrees |
Vertical viewing angles |
32.3 degrees |
Disabling the IR filter |
|
Images |
|
Max. video recording resolution |
2048x1536 |
max. frame per second |
30 |
Sounds |
|
Built-in speaker |
|
Built-in mic |
|
Two-way audio channel |
|
Interfaces |
|
Linear audio input |
|
Linear audio outputting |
|
Video outputting |
|
Ethernet |
|
USB |
|
PoE |
|
RS-485 |
|
Alarming entrance |
|
Number of alarming ingresses |
1 |
Relay output |
|
Number of relay inputs |
1 |
Dimensions and weight |
|
Length |
153 mm |
Width |
153 mm |
Heights |
116 mm |
Weight (disambiguation) |
1 203 g |
