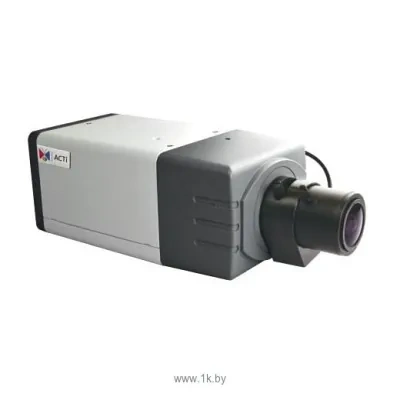

ACTi E22 (Vari-focal lens)
IP camera, design: hull, wired, indoors, operating temperature: -10 - +50 degC, matrix size 1/3.2'', 2592x1944 px, CMOS, optical zoom: 4.3 H
IP camera, design: hull, wired, indoors, operating temperature: -10 - +50 degC, matrix size 1/3.2'', 2592x1944 px, CMOS, optical zoom: 4.3 H
General Characteristics |
|
Camera Types |
IP camera |
Constructions |
hull |
Matrix |
|
Physical Dimensions of the Matrix |
1/3.2'' |
Types of matrices |
CMOS |
Unfolded |
Progressively |
Efficient megapixels of the matrix |
5 MP |
Min. illumination in color mode |
0.1 lux |
Min. illumination in h/b mode |
0.05 lux |
Type of Objectives |
Variophal manual |
Changing Objectives |
|
Fixing the Lens |
CS |
Lighting fixture, min |
1.4 |
Lighting lamp, max |
1.4 |
Focal distance, min. |
2.8 mm |
Focal distance, max |
12 mm |
Optical zoom |
4.3 X |
Diaphragm |
Managed |
Horizontal viewing angles |
70.9 degrees |
Disabling the IR filter |
|
Images |
|
Max. video recording resolution |
2592x1944 |
max. frame per second |
30 |
Sounds |
|
Built-in speaker |
|
Built-in mic |
|
Connecting an external microphone |
|
Two-way audio channel |
|
Interfaces |
|
Audio-mod |
|
Linear audio input |
|
Linear audio outputting |
|
Video outputting |
|
Microphone entrance |
|
Ethernet |
|
PoE |
|
RS-485 |
|
Alarming entrance |
|
Relay output |
|
Dimensions and weight |
|
Length |
169.43 mm |
Width |
67.05 mm |
Heights |
65.02 mm |
Weight (disambiguation) |
438 g |
