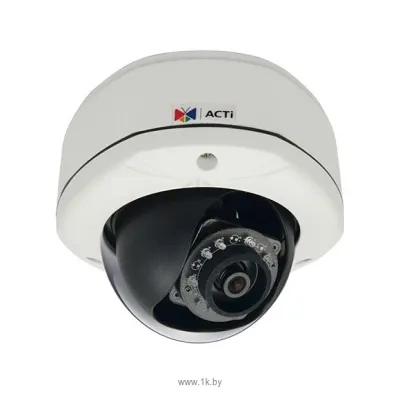

ACTi E72
IP camera, design: domed, wired, outside the precinct, Anti-Vandal Corps, operating temperature: -40 - +50 degC, type of backlight: IR light, matrix size 1/3.2'', 2048x1536 px, CMOS
IP camera, design: domed, wired, outside the precinct, Anti-Vandal Corps, operating temperature: -40 - +50 degC, type of backlight: IR light, matrix size 1/3.2'', 2048x1536 px, CMOS
General Characteristics |
|
Camera Types |
IP camera |
Constructions |
Domed |
Matrix |
|
Physical Dimensions of the Matrix |
1/3.2'' |
Types of matrices |
CMOS |
Unfolded |
Progressively |
Efficient megapixels of the matrix |
3 MP |
Min. illumination in color mode |
0.1 lux |
Type of Objectives |
monofocal |
Changing Objectives |
|
Lighting fixture, min |
2 |
Lighting lamp, max |
2 |
Focal distance, min. |
2.93 mm |
Focal distance, max |
2.93 mm |
Horizontal viewing angles |
83.3 degrees |
Disabling the IR filter |
|
Images |
|
Max. video recording resolution |
2048x1536 |
max. frame per second |
30 |
Sounds |
|
Built-in speaker |
|
Built-in mic |
|
Connecting an external microphone |
|
Two-way audio channel |
|
Interfaces |
|
Audio-mod |
|
Linear audio input |
|
Linear audio outputting |
|
Video outputting |
|
Microphone entrance |
|
Ethernet |
|
PoE |
|
RS-485 |
|
Alarming entrance |
|
Relay output |
|
Dimensions and weight |
|
Length |
150.76 mm |
Width |
150.76 mm |
Heights |
116.9 mm |
Weight (disambiguation) |
975 g |
