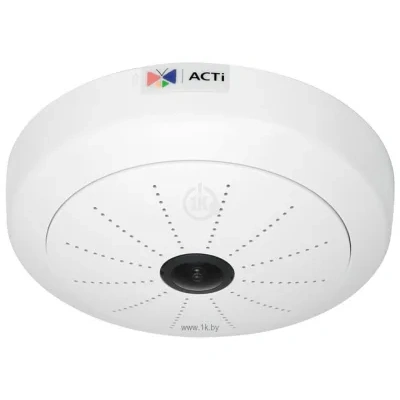

ACTi I51
IP camera, design: with fisheye lens, wired, indoors, operating temperature: -10 - +50 degC, Matrix size 1/2.5'', 2592x1944 px, CMOS, alarming ingress
IP camera, design: with fisheye lens, wired, indoors, operating temperature: -10 - +50 degC, Matrix size 1/2.5'', 2592x1944 px, CMOS, alarming ingress
General Characteristics |
|
Camera Types |
IP camera |
Constructions |
with fisheye lens |
Matrix |
|
Physical Dimensions of the Matrix |
1/2.5'' |
Types of matrices |
CMOS |
Efficient megapixels of the matrix |
5 MP |
Min. illumination in color mode |
0.1 lux |
Min. illumination in h/b mode |
0.05 lux |
Type of Objectives |
monofocal |
Lighting fixture, min |
2.8 |
Lighting lamp, max |
2.8 |
Focal distance, min. |
1.05 mm |
Focal distance, max |
1.05 mm |
Diagonal viewing angles |
180 Degrees |
Horizontal viewing angles |
180 Degrees |
Vertical viewing angles |
180 Degrees |
Disabling the IR filter |
|
Images |
|
Max. video recording resolution |
2592x1944 |
max. frame per second |
30 |
Sounds |
|
Built-in speaker |
|
Built-in mic |
|
Two-way audio channel |
|
Interfaces |
|
Linear audio input |
|
Linear audio outputting |
|
Video outputting |
|
Ethernet |
|
USB |
|
PoE |
|
RS-485 |
|
Alarming entrance |
|
Number of alarming ingresses |
2 |
Relay output |
|
Number of relay inputs |
2 |
Dimensions and weight |
|
Length |
150 mm |
Width |
150 mm |
Heights |
45 mm |
Weight (disambiguation) |
415 g |
